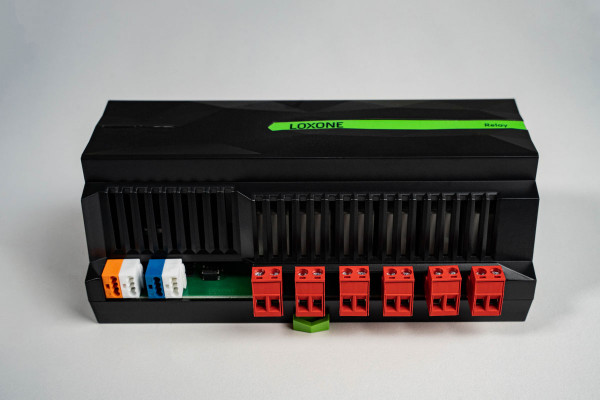

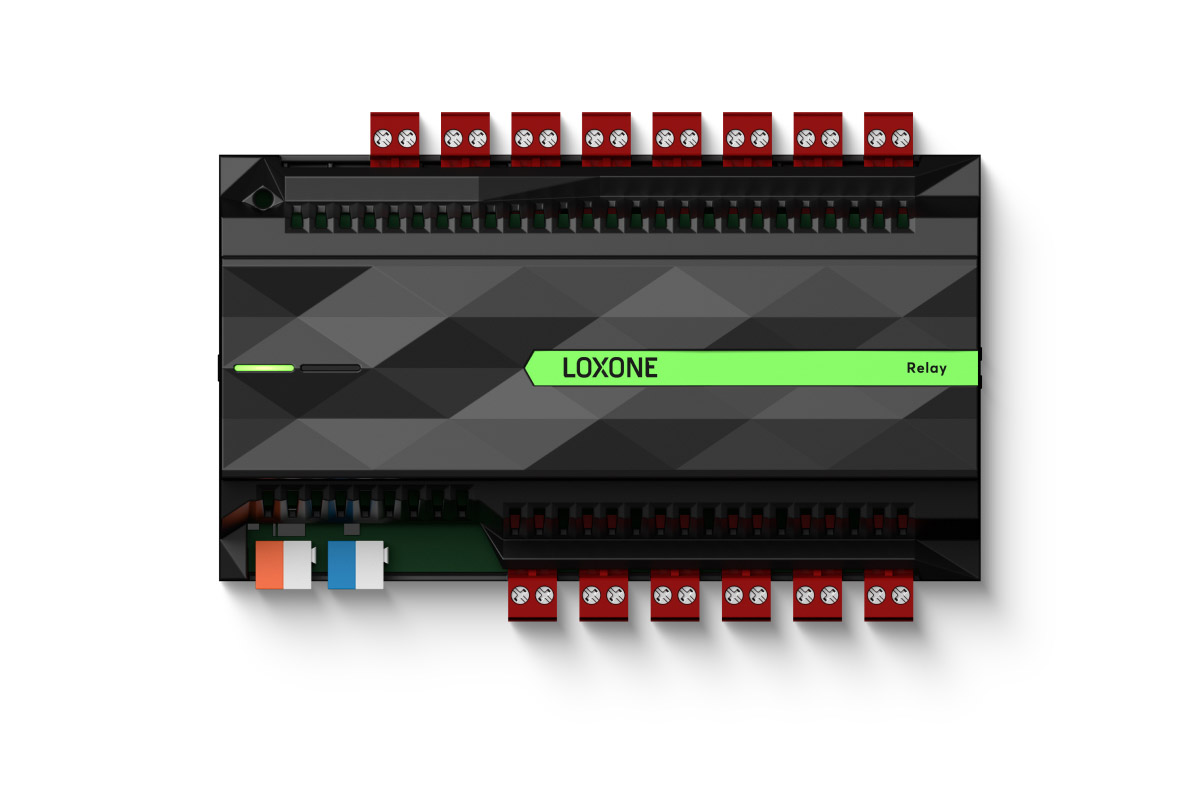

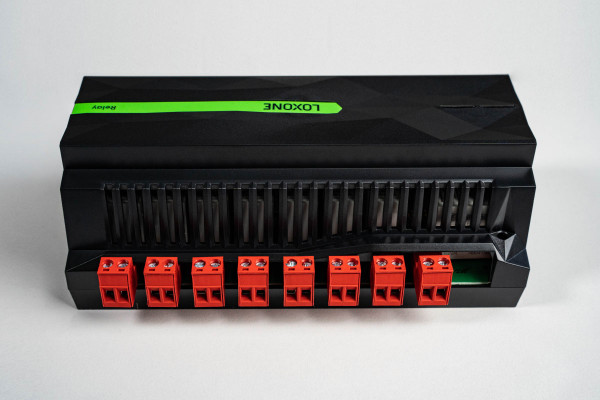

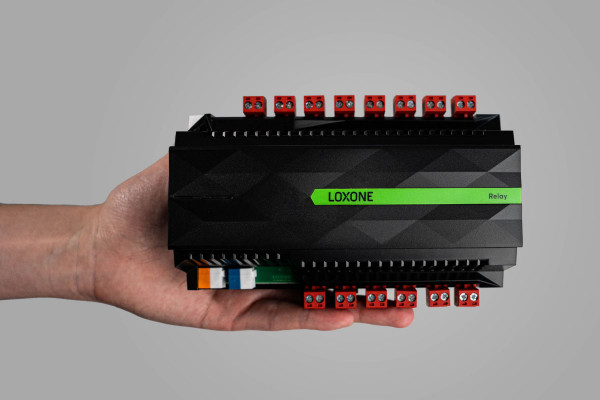

The Loxone Relay Extension provides 14 outputs with potential-free relays . Together with the Miniserver, you get the perfect solution for controlling shading, lighting, heating, alarm systems and much more.
Technical details:
Supply voltage:
18 … 28 VDC
Outputs:
14 digital outputs (Relays), dry contact
250VAC 16A at cos =1 (IEC) total load
whole Extension max. 48A (IEC)
250VAC 15A at cos =1 (UL) total load
whole Extension max. 45A (UL)
max. 30VDC 16A
Product dimensions:
158 x 88 x 59 mm / 6.22 x 3.46 x 2.32" (L x W x H)
